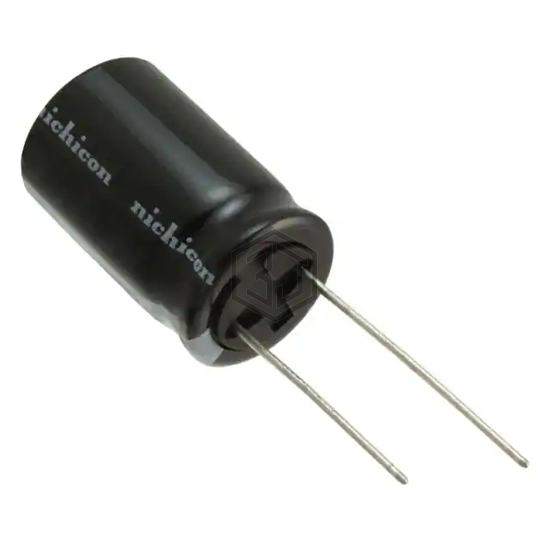

CAP ALUM 8200UF 20% 6.3V RADIAL
UHV0J822MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8200UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 7,284
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.392 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.99 A @ 100 kHz |
| Impedance | 12 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHV0J822MHD1TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FS0J822S | Panasonic Electronic Components | CAP ALUM 8200UF 20% 6.3V RADIAL | 87% | View |
| UPW0J822MHD | Nichicon | CAP ALUM 8200UF 20% 6.3V RADIAL | 83% | View |
| ELXZ100ELL822ML35S | United Chemi-Con | CAP ALUM 8200UF 20% 10V RADIAL | 74% | View |
| 35MXG8200MEFCSN22X45 | Rubycon | CAP ALUM 8200UF 20% 35V SNAP | 70% | View |
| 381LQ822M025J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 25V SNAP | 69% | View |
| EKMH350VSN822MP50U | United Chemi-Con | CAP ALUM 8200UF 20% 35V SNAP | 63% | View |
