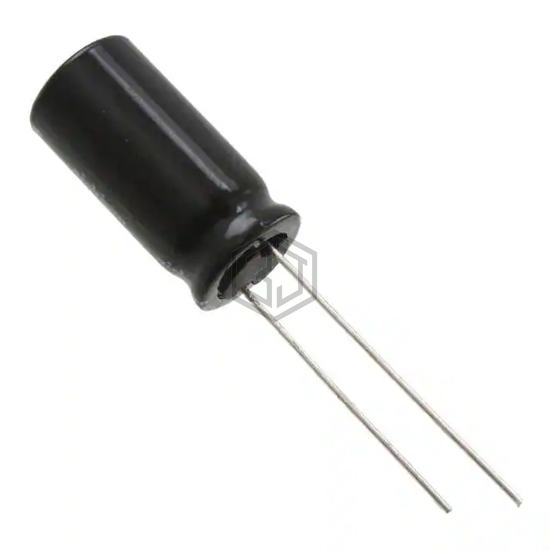

CAP ALUM 2200UF 20% 6.3V RADIAL
UHV0J222MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 3,594
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.62 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.16 A @ 100 kHz |
| Impedance | 19 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHV0J222MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 63VXG2200MEFC22X40 | Rubycon | CAP ALUM 2200UF 20% 63V SNAP | 75% | View |
| EEU-FS1C222L | Panasonic Electronic Components | CAP ALUM 2200UF 20% 16V RADIAL | 74% | View |
| RJA222M1HBK-1636S | SURGE | CAP ALUM 2200UF 20% 50V RADIAL | 68% | View |
| MAL213664222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 10V RADIAL | 67% | View |
| EKZE250EC3222MK35S | United Chemi-Con | CAP ALUM 2200UF 20% 25V RADIAL | 60% | View |
| 381LQ222M100J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 100V SNAP | 60% | View |
Submit your RFQ for UHV0J222MPD and get a quote within 24 hours.
