CAP ALUM 1500UF 20% 6.3V RADIAL

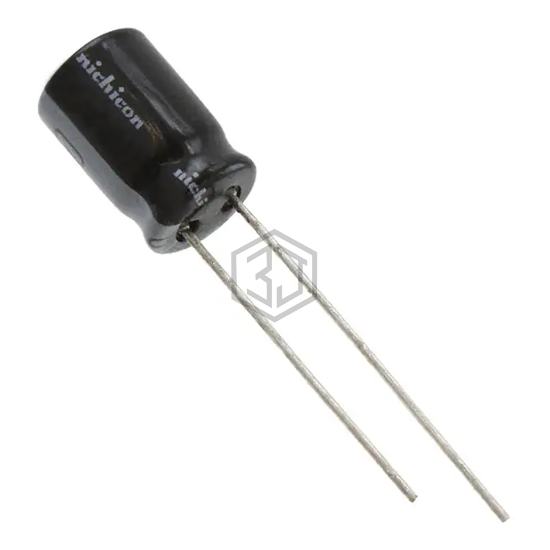

UHV0J152MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 90
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 930 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.55 A @ 100 kHz |
| Impedance | 31 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for UHV0J152MPD and get a quote within 24 hours.
