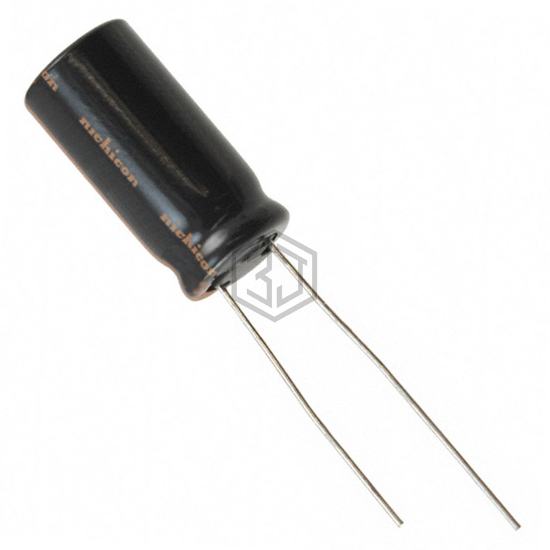

CAP ALUM 1000UF 20% 16V RADIAL
UHN1C102MPD3 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 2,159
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 10 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHN1C102MPD3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16ZLG1000MEFCT810X20 | Rubycon | CAP ALUM 1000UF 20% 16V RADIAL | 92% | View |
| MAL214065102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V RADIAL | 75% | View |
| 517D108M050EK6AE3 | Vishay Sprague | CAP ALUM 1000UF 20% 50V RADIAL | 56% | View |
| LKX2D102MESB40 | Nichicon | CAP ALUM 1000UF 20% 200V SNAP | 56% | View |
| EKMH201VSN102MA35S | United Chemi-Con | CAP ALUM 1000UF 20% 200V SNAP | 56% | View |
| 381LX102M180J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 20% 180V SNAP | 56% | View |
Submit your RFQ for UHN1C102MPD3 and get a quote within 24 hours.
