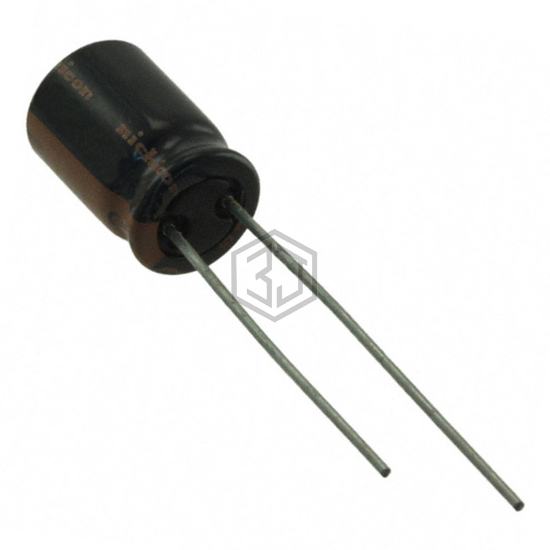

CAP ALUM 680UF 20% 10V RADIAL
UHN1A681MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 9,674
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 21 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHN1A681MPD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESC687M010AH1AA | KEMET | CAP ALUM 680UF 20% 10V RADIAL | 75% | View |
| MAL216065681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V RADIAL | 63% | View |
| 50YXG680MEFCG412.5X30 | Rubycon | CAP ALUM 680UF 20% 50V RADIAL | 59% | View |
| 200MXG680MEFCSN25X30 | Rubycon | CAP ALUM 680UF 20% 200V SNAP | 56% | View |
| 315MXC680MEFCSN30X50 | Rubycon | CAP ALUM 680UF 20% 315V SNAP | 56% | View |
| EKMS161VSN681MQ25S | United Chemi-Con | CAP ALUM 680UF 20% 160V SNAP | 56% | View |
Submit your RFQ for UHN1A681MPD and get a quote within 24 hours.
