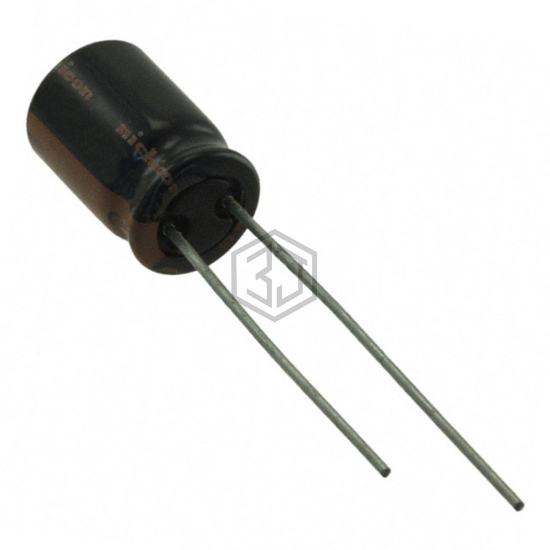

CAP ALUM 1200UF 20% 6.3V RADIAL
UHN0J122MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 8,563
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 20 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHN0J122MPD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FS1H122 | Panasonic Electronic Components | CAP ALUM 1200UF 20% 50V RADIAL | 62% | View |
| 16ZLK1200M10X20 | Rubycon | CAP ALUM 1200UF 20% 16V RADIAL | 59% | View |
| 160MXC1200MEFCSN25X45 | Rubycon | CAP ALUM 1200UF 20% 160V SNAP | 56% | View |
| 860020578019 | Würth Elektronik | CAP ALUM 1200UF 20% 35V RADIAL | 56% | View |
| 383LX122M350N062 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 20% 350V SNAP | 56% | View |
| E91F351VNT122MU65U | United Chemi-Con | CAP ALUM 1200UF 20% 350V SNAP | 56% | View |
Submit your RFQ for UHN0J122MPD and get a quote within 24 hours.
