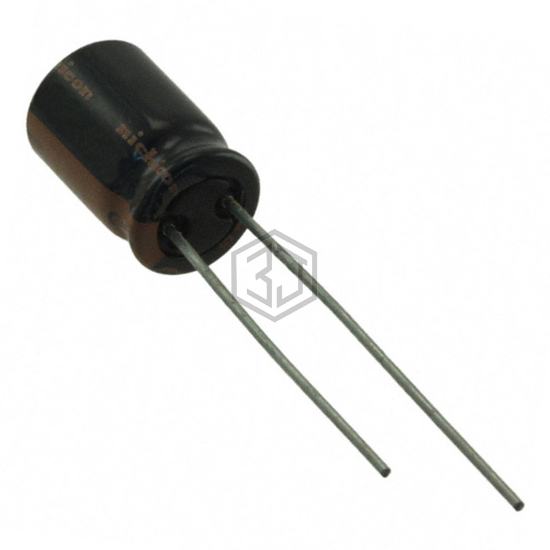

CAP ALUM 1000UF 20% 6.3V RADIAL
UHN0J102MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 2,621
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 20 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHN0J102MPD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 10NXA1000MEFC10X20 | Rubycon | CAP ALUM 1000UF 20% 10V RADIAL | 70% | View |
| 35ZLJ1000M12.5X20 | Rubycon | CAP ALUM 1000UF 20% 35V RADIAL | 62% | View |
| EGXE350ELL102ML25S | United Chemi-Con | CAP ALUM 1000UF 20% 35V RADIAL | 57% | View |
| EET-HC2D102BA | Panasonic Electronic Components | CAP ALUM 1000UF 20% 200V SNAP | 56% | View |
| EKMM251VNN102MA40T | United Chemi-Con | CAP ALUM 1000UF 20% 250V SNAP | 56% | View |
| EST108M016AH4AA | KEMET | CAP ALUM RAD 105C | 56% | View |
Submit your RFQ for UHN0J102MPD and get a quote within 24 hours.
