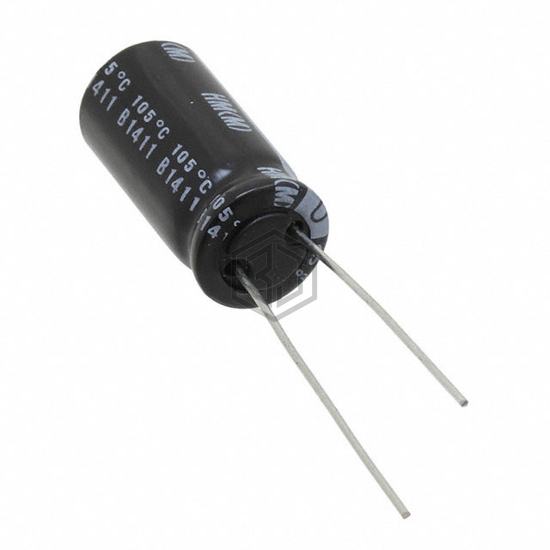

CAP ALUM 3300UF 20% 6.3V RADIAL
UHM0J332MPD9 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 2,363
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 13 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHM0J332MPD9 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FR1A332B | Panasonic Electronic Components | CAP ALUM 3300UF 20% 10V RADIAL | 70% | View |
| 860020278023 | Würth Elektronik | CAP ALUM 3300UF 20% 10V RADIAL | 70% | View |
| EEU-FR1C332L | Panasonic Electronic Components | CAP ALUM 3300UF 20% 16V RADIAL | 67% | View |
| EKZE160ELL332MK35S | United Chemi-Con | CAP ALUM 3300UF 20% 16V RADIAL | 63% | View |
| 100MXG3300MEFCSN35X35 | Rubycon | CAP ALUM 3300UF 20% 100V SNAP | 56% | View |
| 860040378017 | Würth Elektronik | CAP ALUM 3300UF 20% 16V RADIAL | 55% | View |
Submit your RFQ for UHM0J332MPD9 and get a quote within 24 hours.
