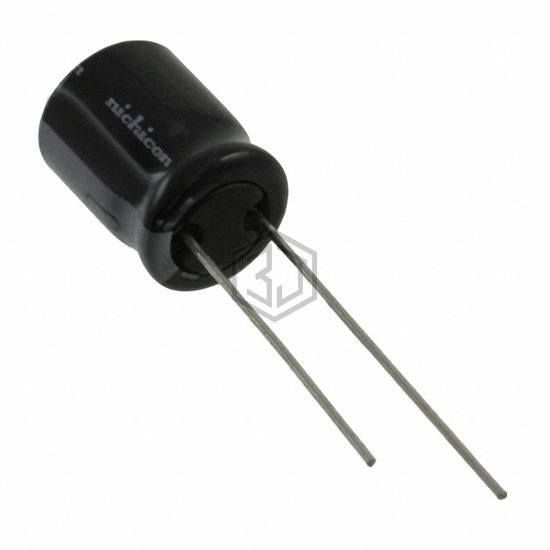

CAP ALUM 1500UF 20% 6.3V RADIAL
UHM0J152MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 3,783
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | 25 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHM0J152MPD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1A152MPD | Nichicon | CAP ALUM 1500UF 20% 10V RADIAL | 70% | View |
| MAL214650152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V RADIAL | 60% | View |
| ELZA160ELL152MJ20S | United Chemi-Con | CAP ALUM 1500UF 20% 16V RADIAL | 59% | View |
| SLP152M100E1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 20% 100V SNAP | 56% | View |
| B43254B1158M | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 160V SNAP | 56% | View |
| 158KBM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1500UF 20% 50V RADIAL | 56% | View |
