CAP ALUM 680UF 20% 100V RADIAL

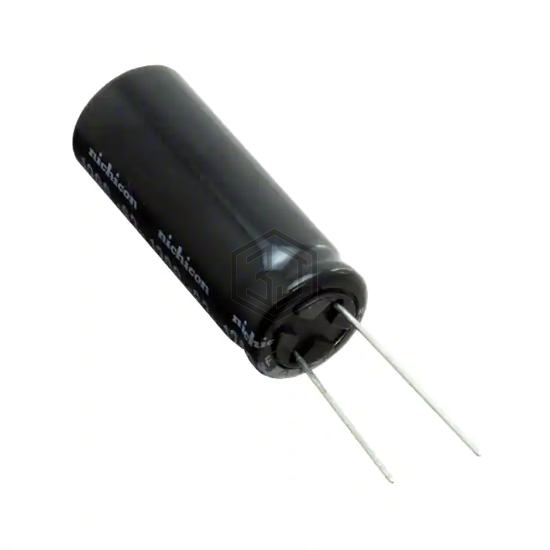

UHE2A681MHT is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 3,847
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.418 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.89 A @ 100 kHz |
| Impedance | 40 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE2A681MHT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGPA630ELL681MM20S | United Chemi-Con | CAP ALUM 680UF 20% 63V RADIAL | 81% | View |
| EEU-FC1V681SB | Panasonic Electronic Components | CAP ALUM 680UF 20% 35V RADIAL | 76% | View |
| 860040778015 | Würth Elektronik | CAP ALUM 680UF 20% 63V RADIAL | 75% | View |
| EKZE160ELL681MH20D | United Chemi-Con | CAP ALUM 680UF 20% 16V RADIAL | 60% | View |
| EEU-FM1V681 | Panasonic Electronic Components | CAP ALUM 680UF 20% 35V RADIAL | 59% | View |
| VHT680M10 | NTE Electronics, Inc | CAP ALUM 680UF 20% 10V RADIAL | 56% | View |
