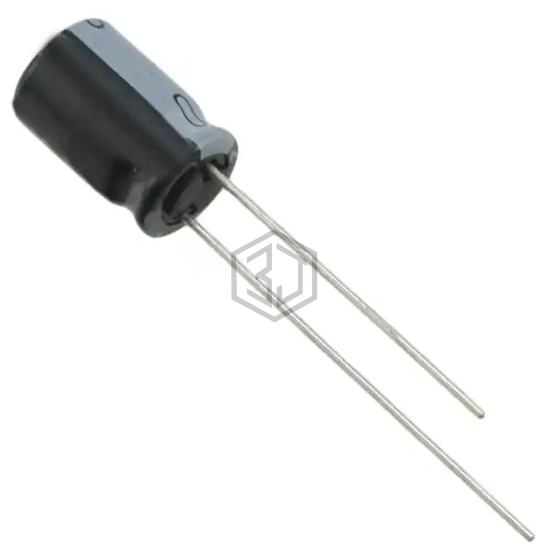

CAP ALUM 56UF 20% 100V RADIAL
UHE2A560MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 9,067
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 285.6 mA @ 120 Hz |
| Ripple Current @ High Frequency | 408 mA @ 100 kHz |
| Impedance | 330 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE2A560MPD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX1K560MPL | Nichicon | CAP ALUM 56UF 20% 80V RADIAL | 76% | View |
| 860040573003 | Würth Elektronik | CAP ALUM 56UF 20% 35V RADIAL | 70% | View |
| 50ZLJ56MTA6.3X11 | Rubycon | CAP ALUM 56UF 20% 50V RADIAL | 66% | View |
| 35ZL56MEFCTA8X7 | Rubycon | CAP ALUM 56UF 20% 35V RADIAL | 58% | View |
| UCY2D560MPD | Nichicon | CAP ALUM 56UF 20% 200V RADIAL | 53% | View |
| 50ZLH56MEFC6.3X11 | Rubycon | CAP ALUM 56UF 20% 50V RADIAL | 52% | View |
Submit your RFQ for UHE2A560MPD1TA and get a quote within 24 hours.
