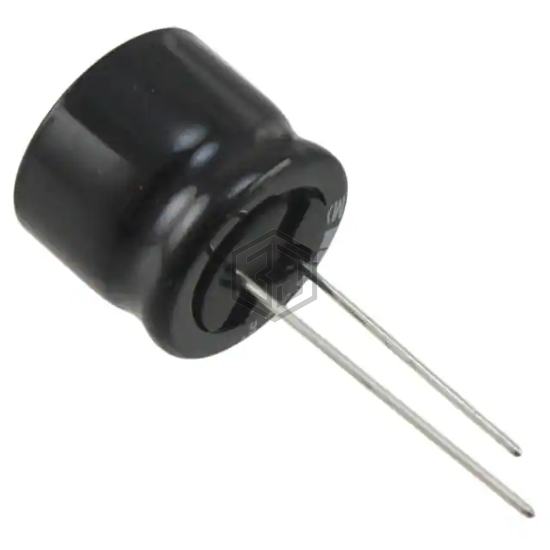

CAP ALUM 180UF 20% 100V RADIAL
UHE2A181MHT6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 1,628
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 721 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.03 A @ 100 kHz |
| Impedance | 120 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE2A181MHT6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EPAG201ELL181MK35S | United Chemi-Con | CAP ALUM 180UF 20% 200V RADIAL | 76% | View |
| B43254F2187M | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 250V SNAP | 74% | View |
| 860080675014 | Würth Elektronik | CAP ALUM 180UF 20% 50V RADIAL | 62% | View |
| MAL213636181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 25V RADIAL | 60% | View |
| 600D187G050DX4 | Vishay Sprague | CAP ALUM 180UF 50V AXIAL | 56% | View |
| B43508B9187M67 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 400V SNAP | 53% | View |
