CAP ALUM 150UF 20% 100V RADIAL

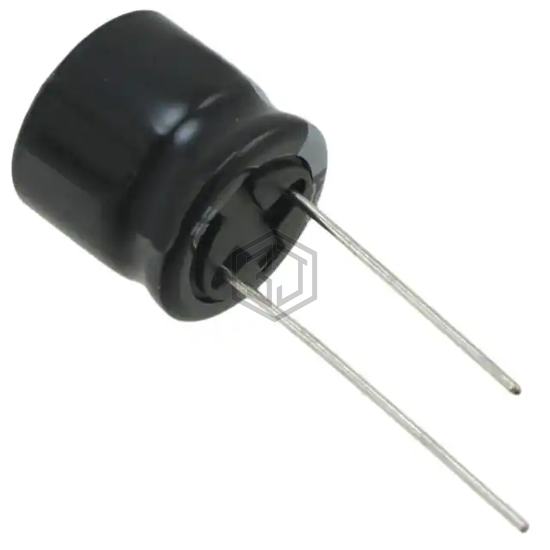

UHE2A151MHT is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 4,977
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 626.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 895 mA @ 100 kHz |
| Impedance | 140 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE2A151MHT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100YXH150MEFCGC16X16 | Rubycon | CAP ALUM 150UF 20% 100V RADIAL | 87% | View |
| 100ZLH150MEFCGA12.5X20 | Rubycon | CAP ALUM 150UF 20% 100V RADIAL | 81% | View |
| MAL211828151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 63V AXIAL | 60% | View |
| UCY2C151MHD3TN | Nichicon | CAP ALUM 150UF 20% 160V RADIAL | 58% | View |
| 35YXG150MEFC8X11.5 | Rubycon | CAP ALUM 150UF 20% 35V RADIAL | 57% | View |
| 50ZLH150MEFC10X12.5 | Rubycon | CAP ALUM 150UF 20% 50V RADIAL | 57% | View |
Submit your RFQ for UHE2A151MHT and get a quote within 24 hours.
