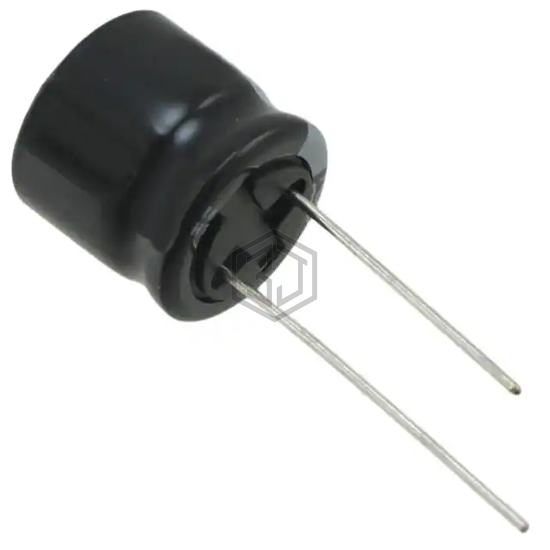

CAP ALUM 150UF 20% 100V RADIAL
UHE2A151MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 5,714
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 626.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 895 mA @ 100 kHz |
| Impedance | 140 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE2A151MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ2C151MHD1TN | Nichicon | CAP ALUM 150UF 20% 160V RADIAL | 79% | View |
| 381LX151M160H202 | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 160V SNAP | 79% | View |
| B43252A2157M000 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 200V SNAP | 77% | View |
| THAS151M250AB0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 250V FLATPACK | 63% | View |
| 35YXH150MEFCT78X11.5 | Rubycon | CAP ALUM 150UF 20% 35V RADIAL | 57% | View |
| TE1212T | Vishay Sprague | CAP ALUM 150UF 25V AXIAL | 56% | View |
