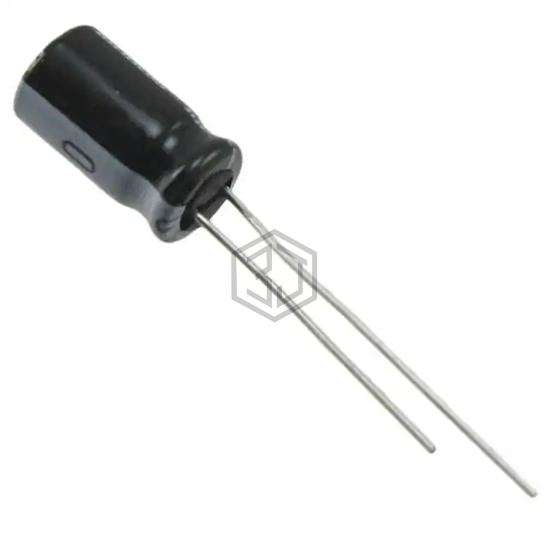

CAP ALUM 56UF 20% 35V RADIAL
UHE1V560MET is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 3,750
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 238 mA @ 120 Hz |
| Ripple Current @ High Frequency | 340 mA @ 100 kHz |
| Impedance | 220 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1V560MET is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALIEYH07LW256X02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 56UF 20% SNAP | 100% | View |
| UAQ2D560MHD | Nichicon | CAP ALUM 56UF 20% 200V RADIAL | 76% | View |
| 80ZLH56MEFCT78X11.5 | Rubycon | CAP ALUM 56UF 20% 80V RADIAL | 68% | View |
| 100ZL56MEFC8X20 | Rubycon | CAP ALUM 56UF 20% 100V RADIAL | 68% | View |
| 80ZLH56MEFC8X11.5 | Rubycon | CAP ALUM 56UF 20% 80V RADIAL | 68% | View |
| 600D566F150DX4 | Vishay Sprague | CAP ALUM 56UF 150V AXIAL | 56% | View |
