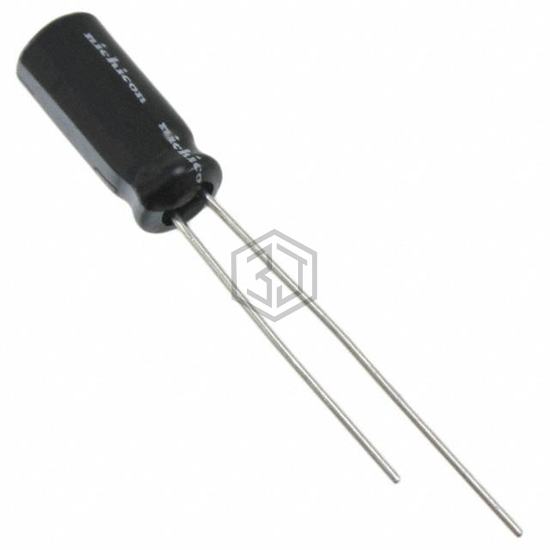

CAP ALUM 33UF 20% 35V RADIAL
UHE1V330MDT is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 5,299
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 115.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 210 mA @ 100 kHz |
| Impedance | 580 mOhms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1V330MDT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 336CKE050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 50V RADIAL | 84% | View |
| PF1H330MPZ0511RU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 80% | View |
| ELXY630ELL330MF15D | United Chemi-Con | CAP ALUM 33UF 20% 63V RADIAL | 77% | View |
| 517D336M050AA7KE3 | Vishay Sprague | CAP ALUM 33UF 20% 50V RADIAL | 77% | View |
| 25MH733MEFCT56.3X7 | Rubycon | CAP ALUM 33UF 20% 25V RADIAL | 58% | View |
| EKMG101EMC330MJC5S | United Chemi-Con | CAP ALUM 33UF 20% 100V RADIAL | 56% | View |
Submit your RFQ for UHE1V330MDT and get a quote within 24 hours.
