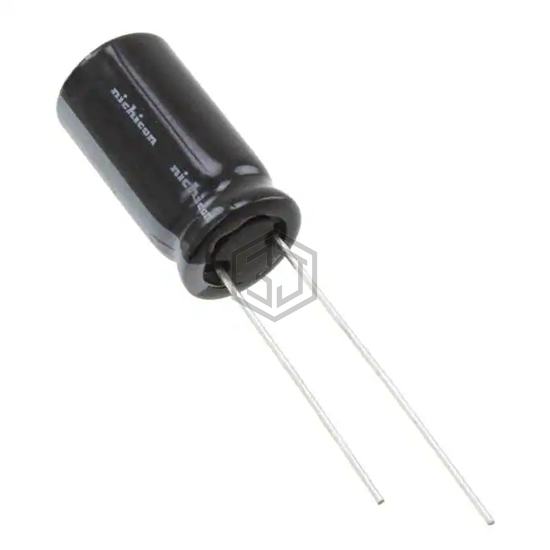

CAP ALUM 270UF 20% 35V RADIAL
UHE1V271MPT is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 3,997
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 735 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
| Impedance | 69 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1V271MPT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FK1V271B | Panasonic Electronic Components | CAP ALUM 270UF 20% 35V RADIAL TH | 92% | View |
| EEU-FR1V271L | Panasonic Electronic Components | CAP ALUM 270UF 20% 35V RADIAL | 87% | View |
| EKY-500ETD271MJ16S | United Chemi-Con | CAP ALUM 270UF 20% 50V RADIAL | 77% | View |
| 63ZLH270MEFC10X20 | Rubycon | CAP ALUM 270UF 20% 63V RADIAL | 73% | View |
| 277KXM063M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 270UF 20% 63V RADIAL | 72% | View |
| 381LX271M200J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 200V SNAP | 61% | View |
Submit your RFQ for UHE1V271MPT and get a quote within 24 hours.
