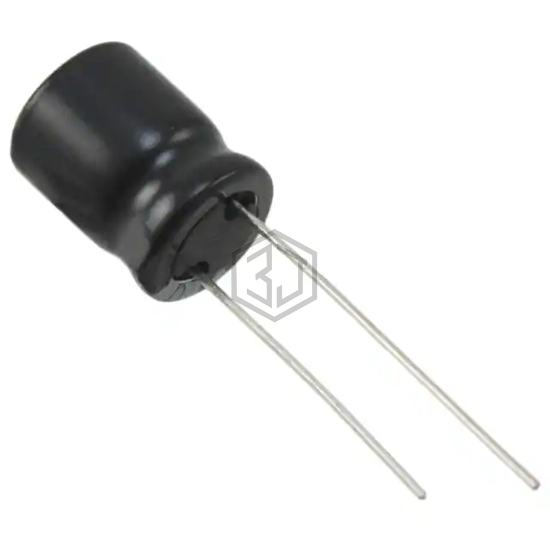

CAP ALUM 1800UF 20% 35V RADIAL
UHE1V182MHT3 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 9,195
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.288 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.86 A @ 100 kHz |
| Impedance | 26 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1V182MHT3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1V182 | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V RADIAL | 93% | View |
| 35YXG1800MEFCG412.5X40 | Rubycon | CAP ALUM 1800UF 20% 35V RADIAL | 89% | View |
| 35YXH1800MEFCG412.5X40 | Rubycon | CAP ALUM 1800UF 20% 35V RADIAL | 89% | View |
| 860080580026 | Würth Elektronik | CAP ALUM 1800UF 20% 35V RADIAL | 86% | View |
| UPA1E182MHD | Nichicon | CAP ALUM 1800UF 20% 25V RADIAL | 81% | View |
| B41858C5188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 25V RADIAL | 77% | View |
Submit your RFQ for UHE1V182MHT3 and get a quote within 24 hours.
