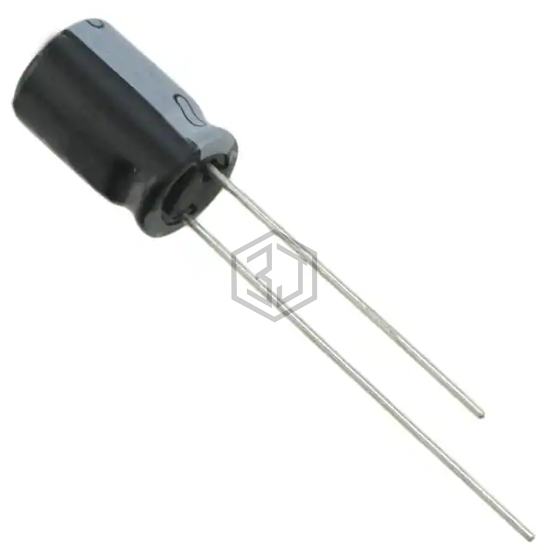

CAP ALUM 150UF 20% 35V RADIAL
UHE1V151MPT is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 2,710
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 448 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 130 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1V151MPT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UHE1V151MPD1TA | Nichicon | CAP ALUM 150UF 20% 35V RADIAL | 100% | View |
| 35YXH150MEFCT78X11.5 | Rubycon | CAP ALUM 150UF 20% 35V RADIAL | 91% | View |
| ESL157M050AG8DA | KEMET | CAP ALUM RAD 105C | 83% | View |
| URZ2C151MHD1TN | Nichicon | CAP ALUM 150UF 20% 160V RADIAL | 67% | View |
| 381LX151M160H202 | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 160V SNAP | 65% | View |
| THAS151M250AB0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 250V FLATPACK | 53% | View |
Submit your RFQ for UHE1V151MPT and get a quote within 24 hours.
