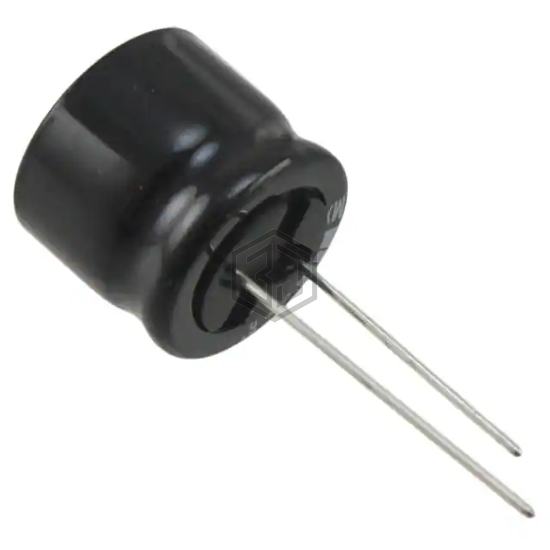

CAP ALUM 1000UF 20% 35V RADIAL
UHE1V102MHT6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 7,097
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.658 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.21 A @ 100 kHz |
| Impedance | 43 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1V102MHT6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35RX301000MZO12.5X25 | Rubycon | CAP ALUM 1000UF 20% 35V RADIAL | 86% | View |
| EKZH250EC3102MJ25S | United Chemi-Con | CAP ALUM 1000UF 20% 25V RADIAL | 76% | View |
| EY1C102MP51020E | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 76% | View |
| 108RZM035M1325 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1000UF 20% 35V RADIAL | 75% | View |
| 16ZLJ1000MT810X16 | Rubycon | CAP ALUM 1000UF 20% 16V RADIAL | 72% | View |
| EGXF630ELL102MK40S | United Chemi-Con | CAP ALUM 1000UF 20% 63V RAD TH | 72% | View |
