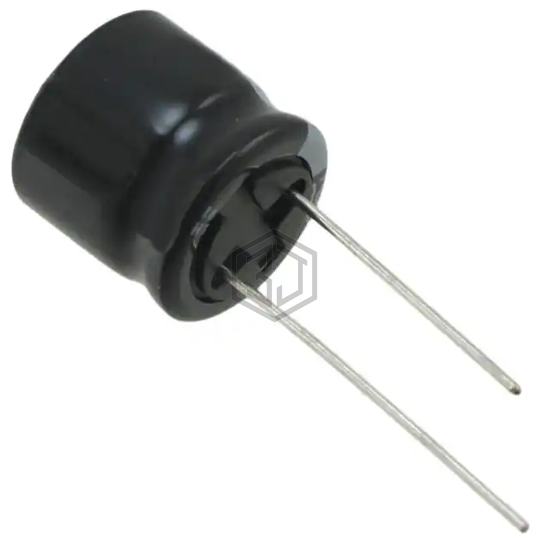

CAP ALUM 470UF 20% 63V RADIAL
UHE1J471MHT6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 8,508
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 847.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.13 A @ 100 kHz |
| Impedance | 91 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1J471MHT6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL224638471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V RADIAL | 85% | View |
| 517D477M100EN6AE3 | Vishay Sprague | CAP ALUM 470UF 20% 100V RADIAL | 82% | View |
| 50YXH470MEFCT810X28 | Rubycon | CAP ALUM 470UF 20% 50V RADIAL | 74% | View |
| B41895D6477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 50V RADIAL | 72% | View |
| ELXV250ERC471MJ20S | United Chemi-Con | CAP ALUM 470UF 20% 25V RADIAL | 71% | View |
| MAL215056471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 25V RADIAL | 63% | View |
Submit your RFQ for UHE1J471MHT6 and get a quote within 24 hours.
