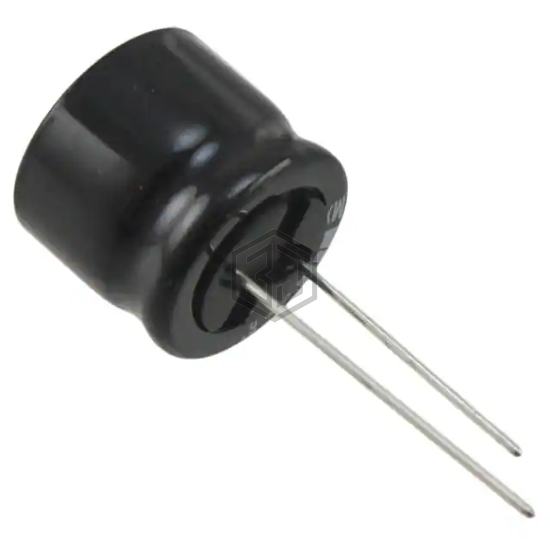

CAP ALUM 390UF 20% 63V RADIAL
UHE1J391MHT is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 1,201
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 772.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.03 A @ 100 kHz |
| Impedance | 120 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1J391MHT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGXF630ELL391MK20S | United Chemi-Con | CAP ALUM 390UF 20% 63V RADIAL TH | 95% | View |
| UBY1J391MHL1TO | Nichicon | CAP ALUM 390UF 20% 63V RADIAL | 87% | View |
| MAL224668391E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 390UF 20% 63V RADIAL | 86% | View |
| 600D397F030DL4 | Vishay Sprague | CAP ALUM 390UF 30V AXIAL | 63% | View |
| B43254A1397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 160V SNAP | 59% | View |
| 381LX391M315A032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 390UF 20% 315V SNAP | 53% | View |
