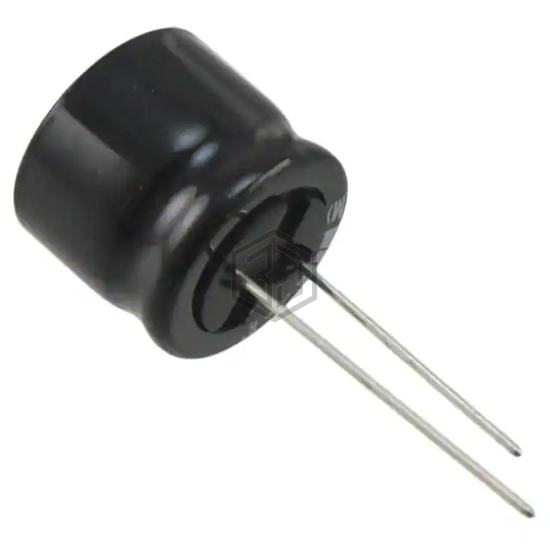

CAP ALUM 390UF 20% 63V RADIAL
UHE1J391MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 5,450
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 772.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.03 A @ 100 kHz |
| Impedance | 120 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for UHE1J391MHD and get a quote within 24 hours.
