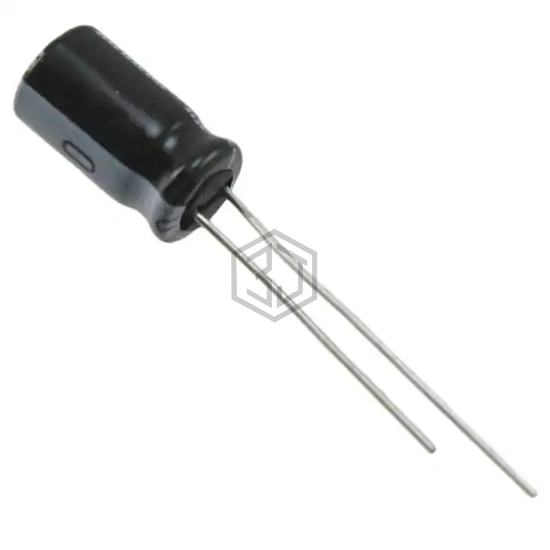

CAP ALUM 33UF 20% 63V RADIAL
UHE1J330MED is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 8,681
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 69.3 mA @ 120 Hz |
| Ripple Current @ High Frequency | 126 mA @ 100 kHz |
| Impedance | 1.2 Ohms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1J330MED is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ1H330MDD1TA | Nichicon | CAP ALUM 33UF 20% 50V RADIAL | 81% | View |
| 35YXM33MEFRT15X11 | Rubycon | CAP ALUM 33UF 20% 35V RADIAL | 81% | View |
| RA-330M1VBK-0511S | Surge | CAP ALUM 35V POLAR | 77% | View |
| 860020372003 | Würth Elektronik | CAP ALUM 33UF 20% 16V RADIAL | 71% | View |
| 25YXF33MEFCT15X11 | Rubycon | CAP ALUM 33UF 20% 25V RADIAL | 71% | View |
| RXJ330M1CBK-0511S | Surge | CAP ALUM 16V POLAR | 67% | View |
