CAP ALUM 1200UF 20% 63V RADIAL

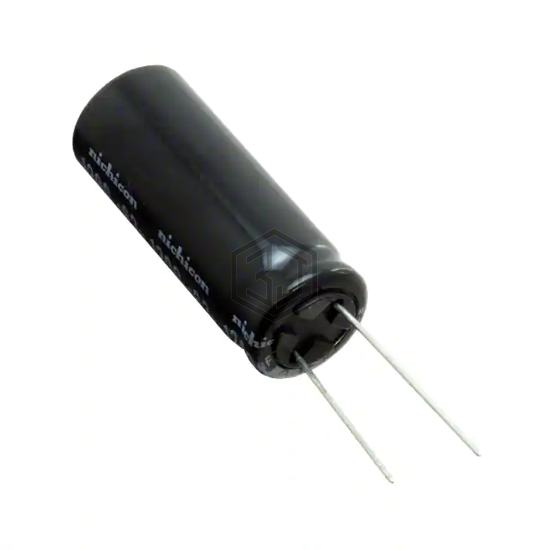

UHE1J122MHT6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 2,789
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.512 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.89 A @ 100 kHz |
| Impedance | 40 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1J122MHT6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100VXG1200MEFC25X35 | Rubycon | CAP ALUM 1200UF 20% 100V SNAP | 81% | View |
| B41888C7128M | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 35V RADIAL | 65% | View |
| B41607A8128M9 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 63V RADIAL | 64% | View |
| EEU-FK1A122B | Panasonic Electronic Components | CAP ALUM 1200UF 20% 10V RAD TH | 62% | View |
| 678D128M016DM4D | Vishay Sprague | CAP ALUM 1200UF 20% 16V RADIAL | 56% | View |
| LGN2C122MELB30 | Nichicon | CAP ALUM 1200UF 20% 160V SNAP | 54% | View |
Submit your RFQ for UHE1J122MHT6 and get a quote within 24 hours.
