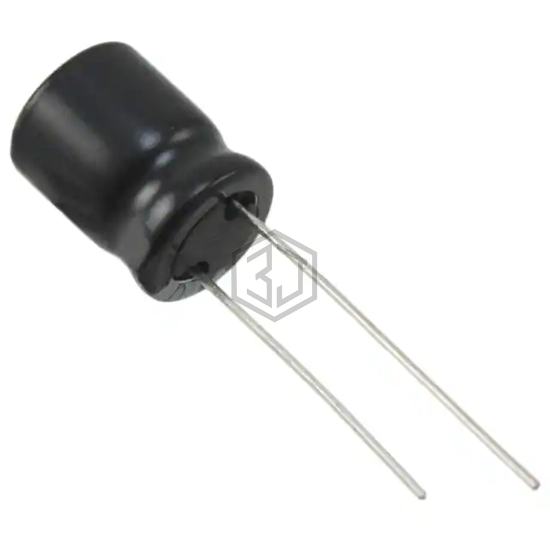

CAP ALUM 1000UF 20% 63V RADIAL
UHE1J102MHT is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 7,150
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.425 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz |
| Impedance | 45 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1J102MHT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESH108M063AM2AA | KEMET | CAP ALUM 1000UF 20% 63V RADIAL | 88% | View |
| RXK102M1HBK-1632S | Surge | CAP ALUM 50V POLAR | 82% | View |
| 50YXA1000MEFCCC12.5X25 | Rubycon | CAP ALUM 1000UF 20% 50V RADIAL | 81% | View |
| MAL214660102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V RADIAL | 73% | View |
| 10ZLH1000MEFCTA8X16 | Rubycon | CAP ALUM 1000UF 20% 10V RADIAL | 60% | View |
| EL1A102MPH1012EP9 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 54% | View |
