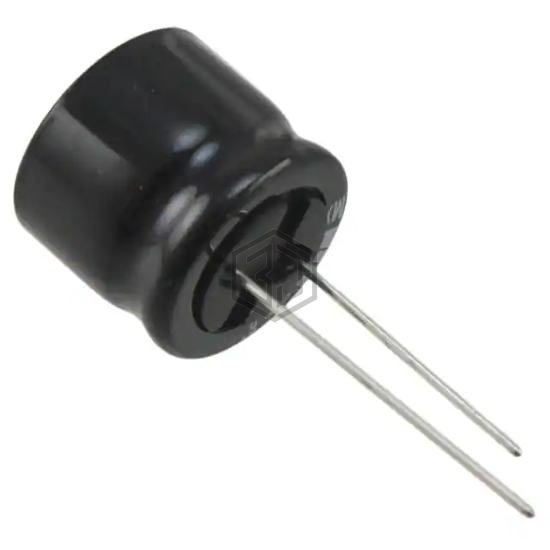

CAP ALUM 560UF 20% 50V RADIAL
UHE1H561MHT6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 8,784
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.448 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.93 A @ 100 kHz |
| Impedance | 54 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1H561MHT6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KY50VB561M12X25LL | United Chemi-Con | CAP ALUM 560UF 20% 50V RADIAL | 86% | View |
| 35YXH560MEFC10X23 | Rubycon | CAP ALUM 560UF 20% 35V RADIAL | 75% | View |
| 100YXG560MEFC16X40 | Rubycon | CAP ALUM 560UF 20% 100V RADIAL | 72% | View |
| 16ZLK560M10X12.5 | Rubycon | CAP ALUM 560UF 20% 16V RADIAL | 63% | View |
| B43508G2567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 59% | View |
| 25ZLH560MEFCTA8X20 | Rubycon | CAP ALUM 560UF 20% 25V RADIAL | 57% | View |
