CAP ALUM 56UF 20% 50V RADIAL

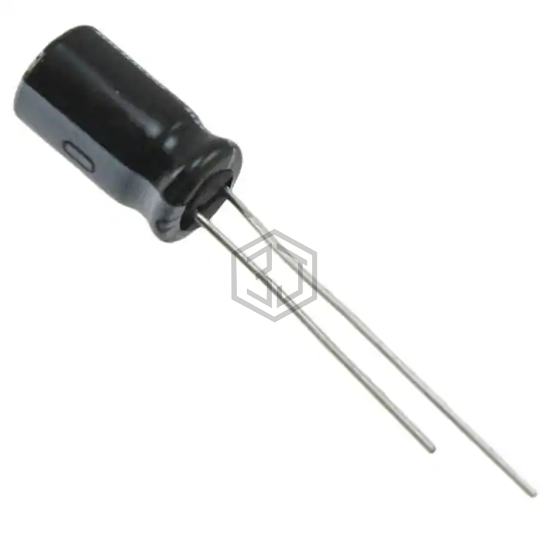

UHE1H560MED1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,221
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 206.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 295 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1H560MED1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50ZLH56MEFCTA6.3X11 | Rubycon | CAP ALUM 56UF 20% 50V RADIAL | 98% | View |
| UPV1H560MGD1TA | Nichicon | CAP ALUM 56UF 20% 50V RADIAL | 94% | View |
| 50YXH56MEFC6.3X11 | Rubycon | CAP ALUM 56UF 20% 50V RADIAL | 92% | View |
| UBX1J560MPL1TD | Nichicon | CAP ALUM 56UF 20% 63V RADIAL | 83% | View |
| EKZN500ELL560MF11D | United Chemi-Con | CAP ALUM 56UF 20% 50V RADIAL | 72% | View |
| 160TXW56MEFR8X25 | Rubycon | CAP ALUM 56UF 20% 160V RADIAL | 58% | View |
Submit your RFQ for UHE1H560MED1TD and get a quote within 24 hours.
