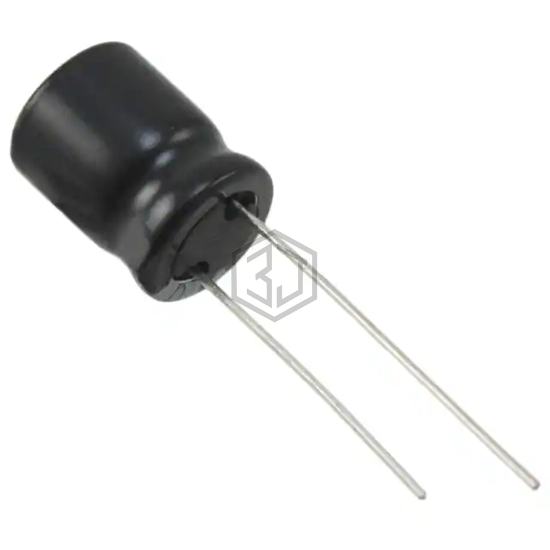

CAP ALUM 1800UF 20% 50V RADIAL
UHE1H182MHT6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 7,800
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.908 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.635 A @ 100 kHz |
| Impedance | 21 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1H182MHT6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50YXH1800MEFCGC18X31.5 | Rubycon | CAP ALUM 1800UF 20% 50V RADIAL | 94% | View |
| EEU-FS1V182S | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V RADIAL | 84% | View |
| 35ZLH1800MEFC12.5X35 | Rubycon | CAP ALUM 1800UF 20% 35V RADIAL | 77% | View |
| MAL214650182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 35V RADIAL | 76% | View |
| B41858E7188M | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 35V RADIAL | 73% | View |
| 381LX182M063H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 20% 63V SNAP | 65% | View |
Submit your RFQ for UHE1H182MHT6 and get a quote within 24 hours.
