CAP ALUM 180UF 20% 50V RADIAL

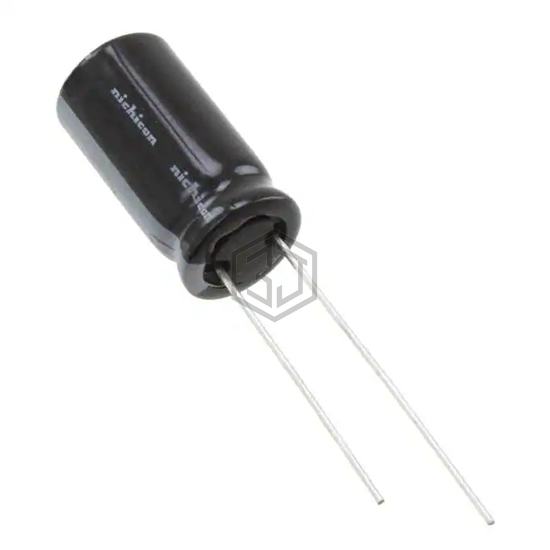

UHE1H181MPT is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 9,174
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 637 mA @ 120 Hz |
| Ripple Current @ High Frequency | 910 mA @ 100 kHz |
| Impedance | 91 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1H181MPT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 510DX187M050CG5D | Vishay Sprague | CAP ALUM 180UF 20% 50V RADIAL | 100% | View |
| 50YXH180MEFC8X20 | Rubycon | CAP ALUM 180UF 20% 50V RADIAL | 93% | View |
| 50ZL180MEFC8X20 | Rubycon | CAP ALUM 180UF 20% 50V RADIAL | 87% | View |
| EEU-FC1J181B | Panasonic Electronic Components | CAP ALUM 180UF 20% 63V RADIAL | 85% | View |
| LGJ2E181MELA | Nichicon | CAP ALUM 180UF 20% 250V SNAP | 70% | View |
| 381LQ181M315H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 180UF 20% 315V SNAP | 65% | View |
Submit your RFQ for UHE1H181MPT and get a quote within 24 hours.
