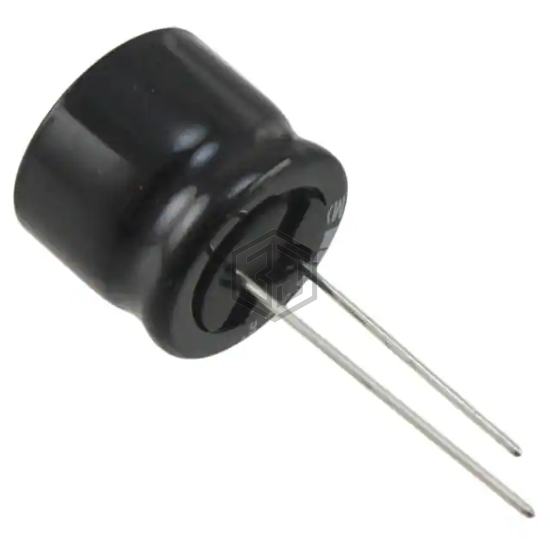

CAP ALUM 1200UF 20% 25V RADIAL
UHE1E122MHT is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 3,855
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.768 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.21 A @ 100 kHz |
| Impedance | 43 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1E122MHT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 757D128M035EK3O | Vishay Sprague | CAP ALUM 1200UF 20% 35V RADIAL | 77% | View |
| EKZE350ETD122MK30S | United Chemi-Con | CAP ALUM 1200UF 20% 35V RADIAL | 68% | View |
| 50YXH1200MEFCKC16X31.5 | Rubycon | CAP ALUM 1200UF 20% 50V RADIAL | 67% | View |
| 381LX122M160K032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 20% 160V SNAP | 64% | View |
| EKZE6R3ETD122MJ16S | United Chemi-Con | CAP ALUM 1200UF 20% 6.3V RADIAL | 56% | View |
| EKY-100ELL122MJ20S | United Chemi-Con | CAP ALUM 1200UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for UHE1E122MHT and get a quote within 24 hours.
