CAP ALUM 8200UF 20% 16V RADIAL

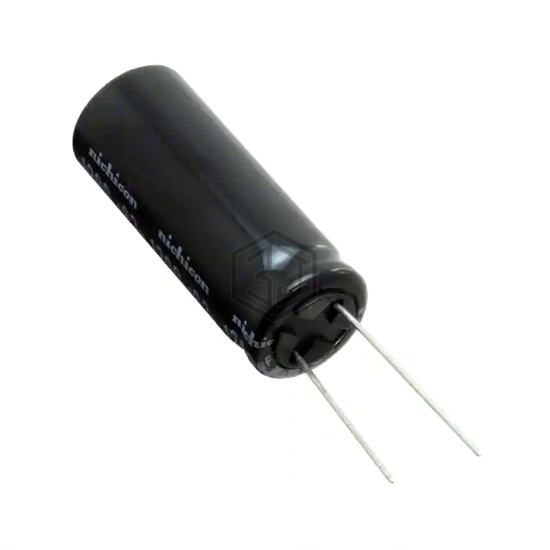

UHE1C822MHT is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8200UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,538
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.376 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.22 A @ 100 kHz |
| Impedance | 14 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1C822MHT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBY1E822MHL | Nichicon | CAP ALUM 8200UF 20% 25V RADIAL | 79% | View |
| EKYB100ELL822MM25S | United Chemi-Con | CAP ALUM 8200UF 20% 10V RADIAL | 79% | View |
| 381LX822M035J042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 35V SNAP | 69% | View |
| B41252B7828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 35V SNAP | 68% | View |
| EGVD250ELL822MMP1H | United Chemi-Con | CAP ALUM 8200UF 20% 25V RADIAL | 67% | View |
| EKMH350VSN822MQ40U | United Chemi-Con | CAP ALUM 8200UF 20% 35V SNAP | 62% | View |
Submit your RFQ for UHE1C822MHT and get a quote within 24 hours.
