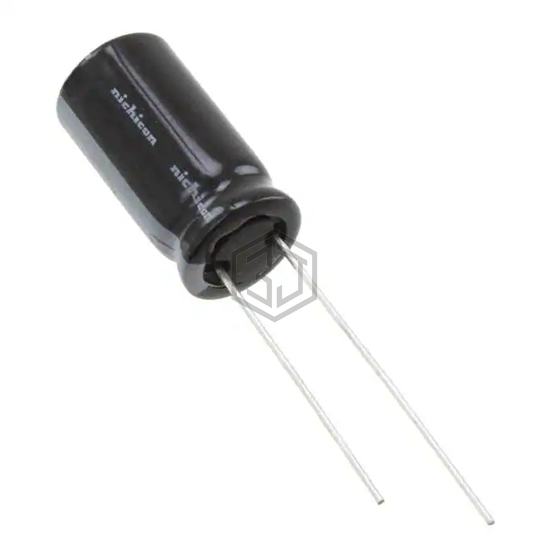

CAP ALUM 680UF 20% 16V RADIAL
UHE1C681MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 1,990
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 787.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.05 A @ 100 kHz |
| Impedance | 69 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1C681MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214665681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V RADIAL | 98% | View |
| UHE1C681MPD6TD | Nichicon | CAP ALUM 680UF 20% 16V RADIAL | 92% | View |
| UHV1C681MPD6TA | Nichicon | CAP ALUM 680UF 20% 16V RADIAL | 90% | View |
| ELZA250ELL681MJ16S | United Chemi-Con | CAP ALUM 680UF 20% 25V RADIAL | 79% | View |
| MAL215064681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 10V RADIAL | 65% | View |
| MAL224698683E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 52% | View |
Submit your RFQ for UHE1C681MPD and get a quote within 24 hours.
