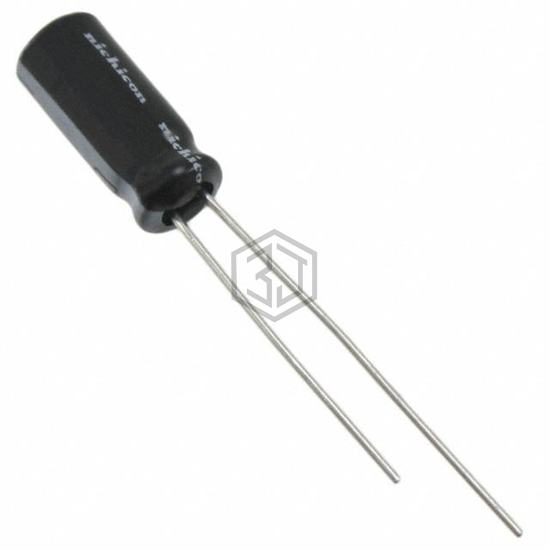

CAP ALUM 56UF 20% 16V RADIAL
UHE1C560MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,647
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 147 mA @ 120 Hz |
| Ripple Current @ High Frequency | 210 mA @ 100 kHz |
| Impedance | 580 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1C560MDD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UHE1C560MDD1TD | Nichicon | CAP ALUM 56UF 20% 16V RADIAL | 100% | View |
| UHE1C560MDT | Nichicon | CAP ALUM 56UF 20% 16V RADIAL | 100% | View |
| UPM1E560MED1TD | Nichicon | CAP ALUM 56UF 20% 25V RADIAL | 82% | View |
| EKZE160ELL560ME11D | United Chemi-Con | CAP ALUM 56UF 20% 16V RADIAL | 80% | View |
| 63YXG56MEFC8X11.5 | Rubycon | CAP ALUM 56UF 20% 63V RADIAL | 74% | View |
| 400CXW56MEFR18X20 | Rubycon | CAP ALUM 56UF 20% 400V RADIAL | 56% | View |
Submit your RFQ for UHE1C560MDD1TA and get a quote within 24 hours.
