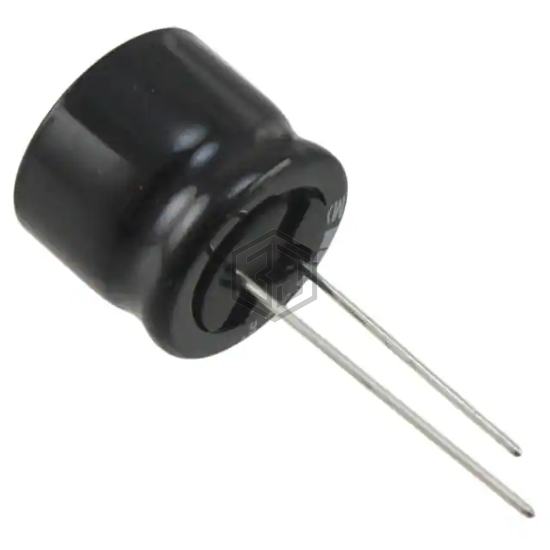

CAP ALUM 2700UF 20% 10V RADIAL
UHE1A272MHT is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 8,258
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.768 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.21 A @ 100 kHz |
| Impedance | 43 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1A272MHT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FS1A272L | Panasonic Electronic Components | CAP ALUM 2700UF 20% 10V RADIAL | 85% | View |
| EEU-FK1C272S | Panasonic Electronic Components | CAP ALUM 2700UF 20% 16V RAD TH | 83% | View |
| B41896D4278M | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 16V RADIAL | 76% | View |
| 63MXC2700MEFC22X35 | Rubycon | CAP ALUM 2700UF 20% 63V SNAP | 72% | View |
| MAL225649272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 100V SNAP | 63% | View |
| ELXZ250ELL272MK40S | United Chemi-Con | CAP ALUM 2700UF 20% 25V RADIAL | 61% | View |
