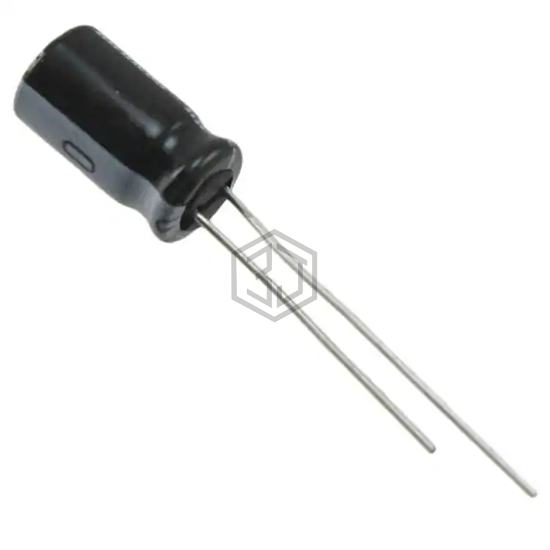

CAP ALUM 220UF 20% 10V RADIAL
UHE1A221MET is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 2,147
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 238 mA @ 120 Hz |
| Ripple Current @ High Frequency | 340 mA @ 100 kHz |
| Impedance | 220 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1A221MET is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 227KBM010M | Cornell Dubilier Knowles | ELECTROLYTIC/IC | 93% | View |
| MAL212324221 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 10V AXIAL | 80% | View |
| 25RX30220M8X11.5 | Rubycon | CAP ALUM 220UF 20% 25V RADIAL | 79% | View |
| 860020474012 | Würth Elektronik | CAP ALUM 220UF 20% 25V RADIAL | 78% | View |
| 50PX220MEFCT810X12.5 | Rubycon | CAP ALUM 220UF 20% 50V RADIAL | 63% | View |
| 35YXF220MEFCT810X12.5 | Rubycon | CAP ALUM 220UF 20% 35V RADIAL | 56% | View |
Submit your RFQ for UHE1A221MET and get a quote within 24 hours.
