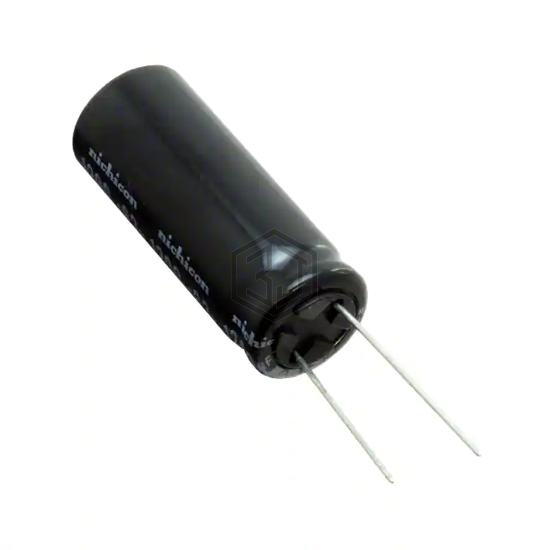

CAP ALUM 10000UF 20% 10V RADIAL
UHE1A103MHT6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 8,253
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.376 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.22 A @ 100 kHz |
| Impedance | 14 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE1A103MHT6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX103M016J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 16V SNAP | 71% | View |
| EKMG100ELL103MLP1S | United Chemi-Con | CAP ALUM 10000UF 20% 10V RADIAL | 69% | View |
| EKMH350VNN103MQ45W | United Chemi-Con | CAP ALUM 10000UF 20% 35V SNAP | 68% | View |
| EKMH630VNN103MA50W | United Chemi-Con | CAP ALUM 10000UF 20% 63V SNAP | 67% | View |
| MAL212614103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 10V AXIAL | 66% | View |
| 16MXC10000MEFCSN22X30 | Rubycon | CAP ALUM 10000UF 20% 16V SNAP | 62% | View |
