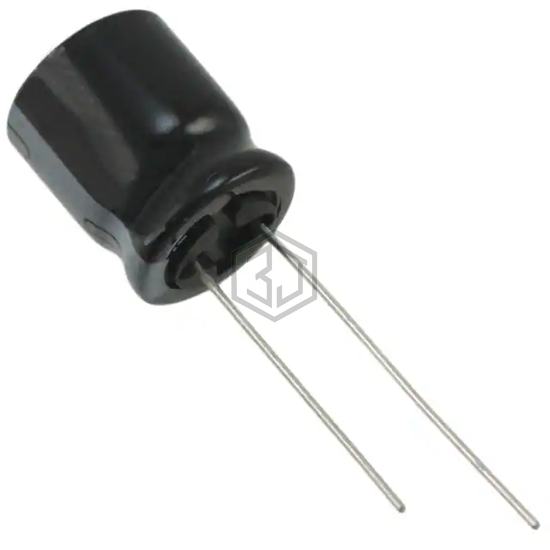

CAP ALUM 4700UF 20% 6.3V RADIAL
UHE0J472MHT is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 3,076
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.65 A @ 100 kHz |
| Impedance | 24 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE0J472MHT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH500VNN472MR30S | United Chemi-Con | CAP ALUM 4700UF 20% 50V SNAP | 75% | View |
| 381LX472M035A202 | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 20% 35V SNAP | 74% | View |
| 50MXG4700MEFCSN20X45 | Rubycon | CAP ALUM 4700UF 20% 50V SNAP | 74% | View |
| MAL214064472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 10V RADIAL | 72% | View |
| 478CKE016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4700UF 20% 16V RADIAL | 72% | View |
| MAL214695475E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 16V RADIAL | 71% | View |
Submit your RFQ for UHE0J472MHT and get a quote within 24 hours.
