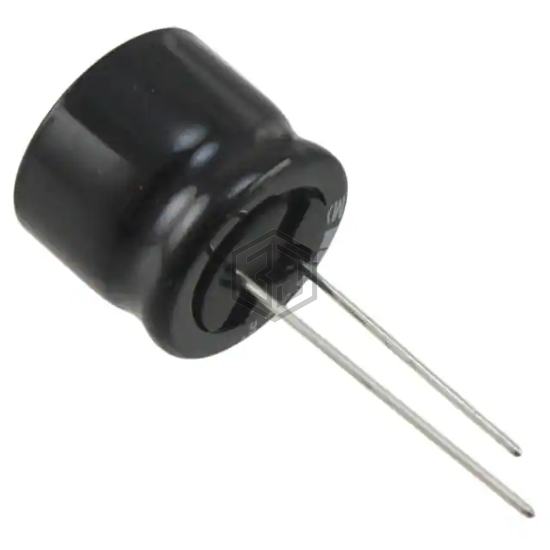

CAP ALUM 3900UF 20% 6.3V RADIAL
UHE0J392MHT6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3900UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 6,302
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.768 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.21 A @ 100 kHz |
| Impedance | 43 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE0J392MHT6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EST398M6R3AL4AA | KEMET | CAP ALUM RAD 105C | 98% | View |
| SL398M6V3HJHRR | NextGen Components | CAP ALUM 3900UF 20% 6.3V 10K HRS | 88% | View |
| KZE6.3VB392M12X25LL | United Chemi-Con | CAP ALUM 3900UF 20% 6.3V RADIAL | 81% | View |
| MAL224666392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 25V RADIAL | 68% | View |
| 16YXG3900MEFC18X20 | Rubycon | CAP ALUM 3900UF 20% 16V RADIAL | 68% | View |
| 381LQ392M080J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3900UF 20% 80V SNAP | 56% | View |
