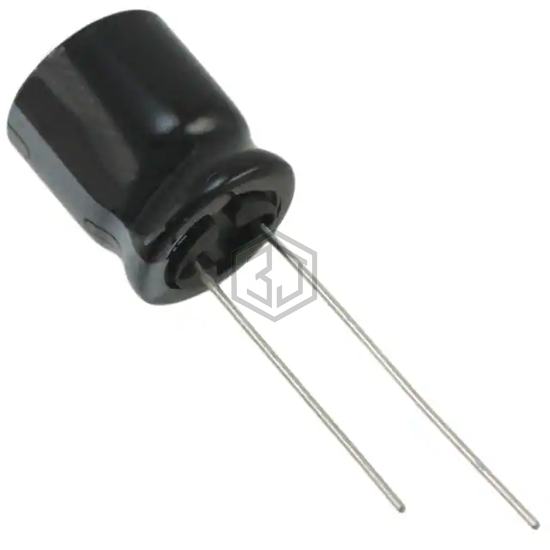

CAP ALUM 3300UF 20% 6.3V RADIAL
UHE0J332MHT is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 5,539
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.52 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz |
| Impedance | 35 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE0J332MHT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW0J332MHH | Nichicon | CAP ALUM 3300UF 20% 6.3V RADIAL | 95% | View |
| EEU-FS0J332B | Panasonic Electronic Components | CAP ALUM 3300UF 20% 6.3V RADIAL | 87% | View |
| 35WXA3300MEFC18X25 | Rubycon | CAP ALUM 3300UF 20% 35V RADIAL | 76% | View |
| B41888C3338M | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 10V RADIAL | 73% | View |
| EEU-FC1C332S | Panasonic Electronic Components | CAP ALUM 3300UF 20% 16V RADIAL | 67% | View |
| B41252A7338M002 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 35V SNAP | 65% | View |
