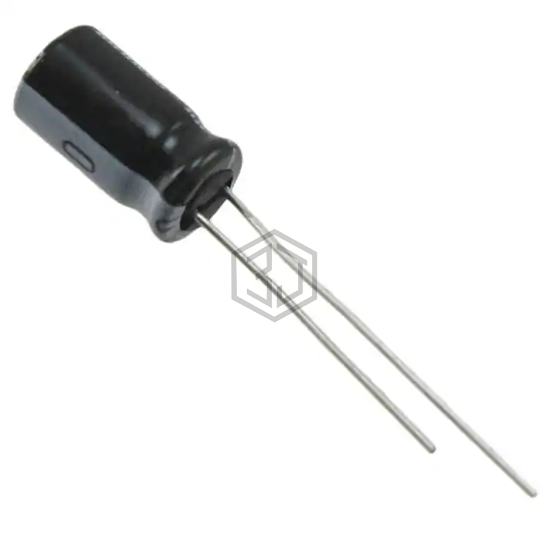

CAP ALUM 330UF 20% 6.3V RADIAL
UHE0J331MET is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 1,588
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 238 mA @ 120 Hz |
| Ripple Current @ High Frequency | 340 mA @ 100 kHz |
| Impedance | 220 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE0J331MET is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| REA0812331M006B | KYOCERA AVX | CAP ALUM 6.3V POLAR | 98% | View |
| EST337M6R3AE3AA | KEMET | CAP ALUM RAD 105C | 92% | View |
| 10RX30330MTA8X11.5 | Rubycon | CAP ALUM 330UF 20% 10V RADIAL | 86% | View |
| 10YXM330MEFRTA8X11.5 | Rubycon | CAP ALUM 330UF 20% 10V RADIAL | 85% | View |
| 16PX330MEFC6.3X11 | Rubycon | CAP ALUM 330UF 20% 16V RADIAL | 75% | View |
| MAL211654331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 10V RADIAL | 70% | View |
Submit your RFQ for UHE0J331MET and get a quote within 24 hours.
