CAP ALUM 150UF 20% 6.3V RADIAL

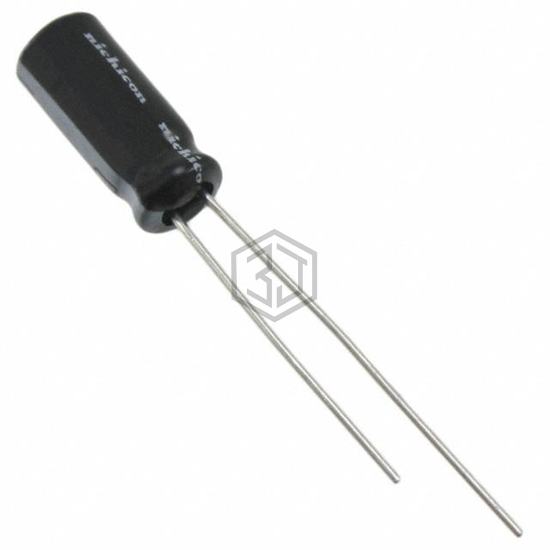

UHE0J151MDT is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 5,535
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 147 mA @ 120 Hz |
| Ripple Current @ High Frequency | 210 mA @ 100 kHz |
| Impedance | 580 mOhms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE0J151MDT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPV0J151MGD1TA | Nichicon | CAP ALUM 150UF 20% 6.3V RADIAL | 92% | View |
| MAL212383151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 6.3V AXIAL | 89% | View |
| 6.3ZL150MEFCTZ6.3X7 | Rubycon | CAP ALUM 150UF 20% 6.3V RADIAL | 85% | View |
| MAL211673151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 6.3V RADIAL | 77% | View |
| 860020473010 | Würth Elektronik | CAP ALUM 150UF 20% 25V RADIAL | 70% | View |
| MAL212636151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 25V AXIAL | 65% | View |
