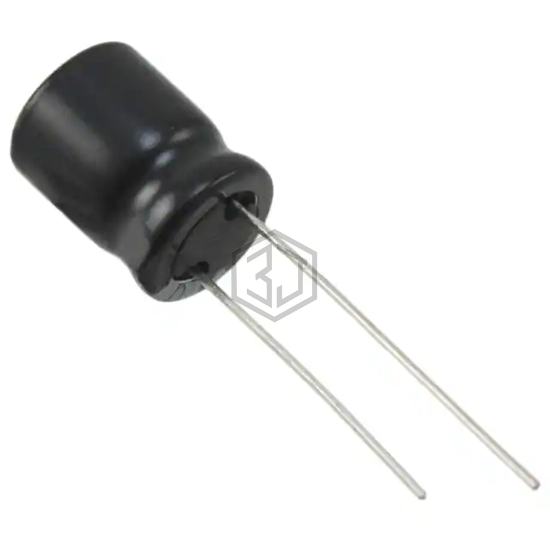

CAP ALUM 12000UF 20% 6.3V RADIAL
UHE0J123MHT6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 12000UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 2,005
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 12000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.336 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.17 A @ 100 kHz |
| Impedance | 15 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHE0J123MHT6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH350VNN123MQ50U | United Chemi-Con | CAP ALUM 12000UF 20% 35V SNAP | 74% | View |
| B41252B5129M | EPCOS - TDK Electronics | CAP ALUM 12000UF 20% 25V SNAP | 70% | View |
| EKMH350VNN123MA30U | United Chemi-Con | CAP ALUM 12000UF 20% 35V SNAP | 70% | View |
| 381LX123M035J042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 20% 35V SNAP | 70% | View |
| EKMH500VSN123MA45U | United Chemi-Con | CAP ALUM 12000UF 20% 50V SNAP | 68% | View |
| SLP123M050H4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 20% 50V SNAP | 64% | View |
Submit your RFQ for UHE0J123MHT6 and get a quote within 24 hours.
