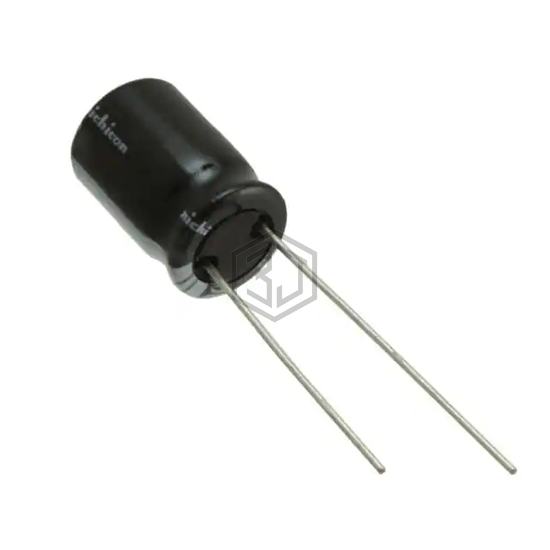

CAP ALUM 33UF 20% 35V RADIAL
UHD1V330MDD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 3,858
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 137.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 250 mA @ 100 kHz |
| Impedance | 300 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHD1V330MDD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UHE1V330MDD1TA | Nichicon | CAP ALUM 33UF 20% 35V RADIAL | 85% | View |
| UPS2F330MHD | Nichicon | CAP ALUM 33UF 20% 315V RADIAL | 76% | View |
| UAS2D330MPD | Nichicon | CAP ALUM 33UF 20% 200V RADIAL | 75% | View |
| 50PX33MEFC5X11 | Rubycon | CAP ALUM 33UF 20% 50V RADIAL | 66% | View |
| 672D336H100EK5D | Vishay Sprague | CAP ALUM 33UF 100V RADIAL | 56% | View |
| 100YXJ33MTA8X11.5 | Rubycon | CAP ALUM 33UF 20% 100V RADIAL | 54% | View |
