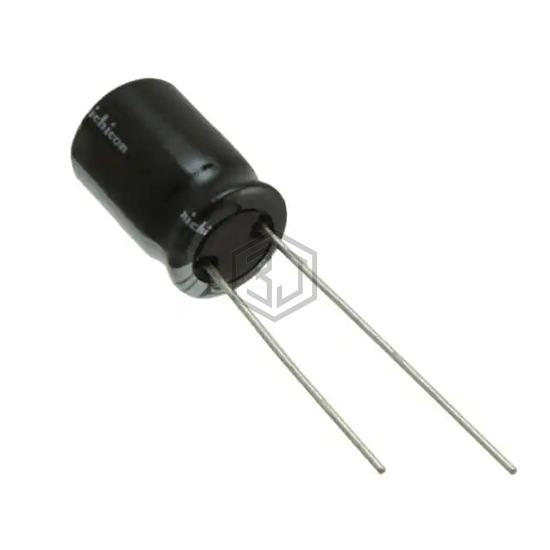

CAP ALUM 150UF 20% 35V RADIAL
UHD1V151MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 4,674
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 532 mA @ 120 Hz |
| Ripple Current @ High Frequency | 760 mA @ 100 kHz |
| Impedance | 72 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHD1V151MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200WXA150MEFC18X25 | Rubycon | CAP ALUM 150UF 20% 200V RADIAL | 75% | View |
| MAL211927151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 40V AXIAL | 73% | View |
| 381LX151M200J202 | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 200V SNAP | 68% | View |
| B41888D6157M | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 50V RADIAL | 65% | View |
| EEU-FR1E151B | Panasonic Electronic Components | CAP ALUM 150UF 20% 25V RADIAL | 63% | View |
| 672D157H7R5CD5C | Vishay Sprague | CAP ALUM 150UF 7.5V RADIAL | 56% | View |
Submit your RFQ for UHD1V151MPD1TD and get a quote within 24 hours.
