CAP ALUM 22UF 20% 50V RADIAL

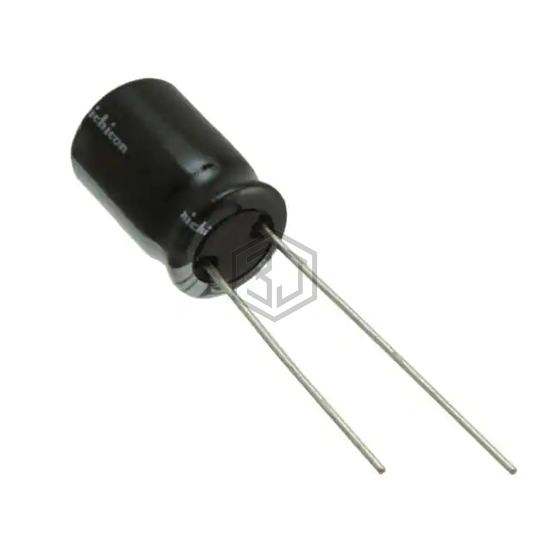

UHD1H220MDD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,256
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 130.9 mA @ 120 Hz |
| Ripple Current @ High Frequency | 238 mA @ 100 kHz |
| Impedance | 340 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHD1H220MDD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELE-101ELL220MHB5D | United Chemi-Con | CAP ALUM 22UF 20% 100V RADIAL | 77% | View |
| EKMG401ETE220MK25S | United Chemi-Con | CAP ALUM 22UF 20% 400V RADIAL | 74% | View |
| RJ4-450V220MJ6# | Elna America | CAP 22UF 450V RADIAL | 72% | View |
| MAL214258229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 63V RADIAL | 71% | View |
| MAL214232295E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 350V RADIAL | 62% | View |
| EV226M025A9DAAKPLP | KEMET | ALUM ELECTRO CAP | 57% | View |
