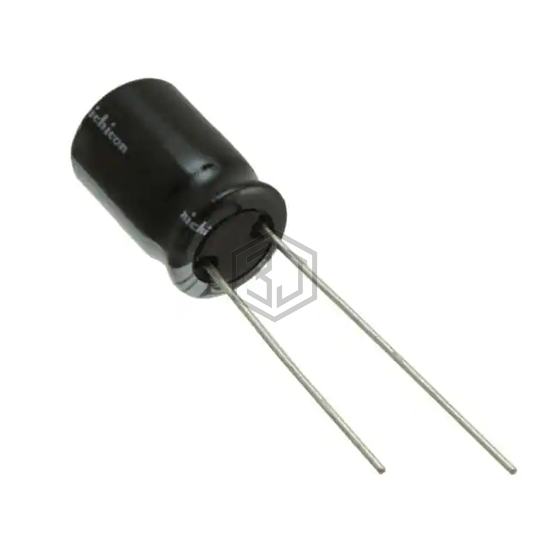

CAP ALUM 22UF 20% 50V RADIAL
UHD1H220MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 9,587
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 130.9 mA @ 120 Hz |
| Ripple Current @ High Frequency | 238 mA @ 100 kHz |
| Impedance | 340 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHD1H220MDD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FM1H220B | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 98% | View |
| 517D226M160CG6AE3 | Vishay Sprague | CAP ALUM 22UF 20% 160V RADIAL | 76% | View |
| B43866C2226M | EPCOS - TDK Electronics | CAP ALUM 22UF 20% 250V RADIAL | 70% | View |
| 200YXF22MEFCT810X20 | Rubycon | CAP ALUM 22UF 20% 200V RADIAL | 68% | View |
| ESH226M016AC3DA | KEMET | CAP ALUM 22UF 20% 16V RADIAL | 56% | View |
| 35PX22MEFC5X11 | Rubycon | CAP ALUM 22UF 20% 35V RADIAL | 50% | View |
Submit your RFQ for UHD1H220MDD1TA and get a quote within 24 hours.
