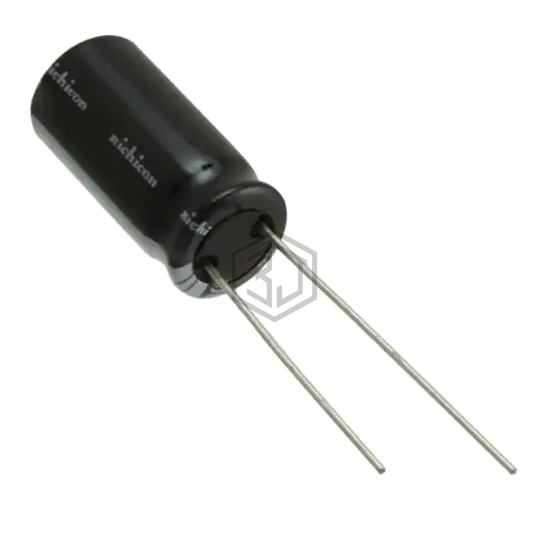

CAP ALUM 680UF 20% 16V RADIAL
UHD1C681MPD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 9,265
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.073 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 38 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHD1C681MPD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D687F012DT5D | Vishay Sprague | CAP ALUM 680UF 12V RADIAL | 82% | View |
| 16PX680MEFC8X11.5 | Rubycon | CAP ALUM 680UF 20% 16V RADIAL | 74% | View |
| 16YXS680MEFC8X16 | Rubycon | CAP ALUM 680UF 20% 16V RADIAL | 74% | View |
| B41896C7687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 35V RADIAL | 67% | View |
| EKZE630ETS681MM20S | United Chemi-Con | CAP ALUM 680UF 20% 63V RADIAL | 64% | View |
| 511D687M063EN5D | Vishay Sprague | CAP ALUM 680UF 20% 63V RADIAL | 56% | View |
