CAP ALUM 680UF 20% 16V RADIAL

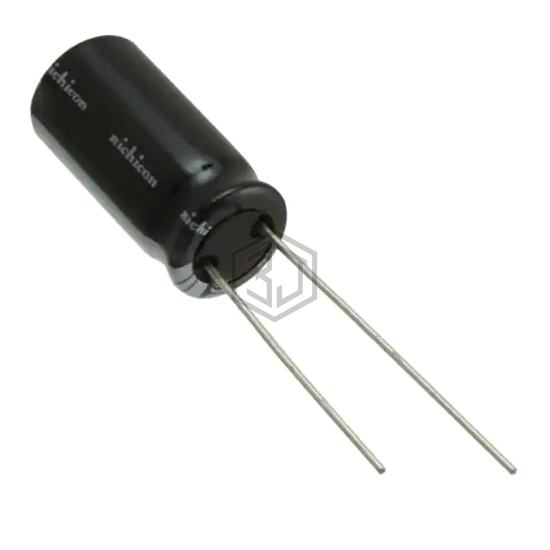

UHD1C681MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 9,677
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 937.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.25 A @ 100 kHz |
| Impedance | 41 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHD1C681MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16YXG680MEFCT78X20 | Rubycon | CAP ALUM 680UF 20% 16V RADIAL | 80% | View |
| ELXY350ELL681MK25S | United Chemi-Con | CAP ALUM 680UF 20% 35V RADIAL | 72% | View |
| MAL211825681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V AXIAL | 66% | View |
| 10ZLK680MT78X16 | Rubycon | CAP ALUM 680UF 20% 10V RADIAL | 64% | View |
| B41888D8687M | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 63V RADIAL | 64% | View |
| B41859C5687M008 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 25V RADIAL | 61% | View |
