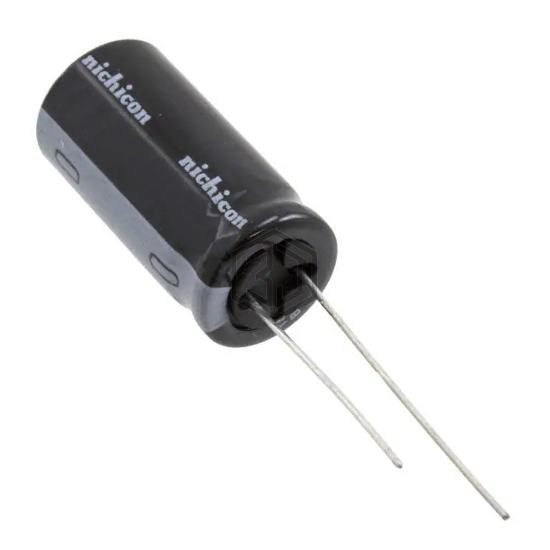

CAP ALUM 3900UF 20% 10V RADIAL
UHD1A392MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3900UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,412
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.512 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.14 A @ 100 kHz |
| Impedance | 18 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHD1A392MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860080278023 | Würth Elektronik | CAP ALUM 3900UF 20% 10V RADIAL | 97% | View |
| UHE1A392MHD1CA | Nichicon | CAP ALUM 10V POLAR | 89% | View |
| RZW392M1ABK-1620S | Surge | CAP ALUM 10V POLAR | 83% | View |
| EEU-FS1C392L | Panasonic Electronic Components | CAP ALUM 3900UF 20% 16V RADIAL | 78% | View |
| 381LQ392M080J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3900UF 20% 80V SNAP | 72% | View |
| MAL224666392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 25V RADIAL | 70% | View |
Submit your RFQ for UHD1A392MHD6 and get a quote within 24 hours.
